BCS offers fiber optic installations in Austin. We will help you choose the right fiber optic cables for your needs. Not all fiber cables are created equal. We can help you choose the right fiber optic cables for your business depending on what your requirements are for speed, locations of run, and applications. Give us a call for a free estimate.
Do you have some existing fiber cables that are broken and need to be re-terminated? Or did you have some fiber data cables installed by another vendor that the fiber simply didn’t work? We get this quite often. It’s not a big deal. Call us, and let us help you terminate the fiber connections and test it for you. We can even go to the extent of making sure the fiber connections are activated and working on your existing equipment.
Do you have existing fiber optics cables or connections that stopped working? Need a vendor that can help you troubleshoot? Give us a call. Even if we didn’t install it, we can help you troubleshoot. Our certified technicians are equipped with the knowledge and equipment to get the job done. TIPs : Some fiber connections don’t work because it simply needs to be clean. Special alcohol wipes can get the job done.
Do you have a fiber cable that is broken or damaged? Our Fiber Optic Certified techs are equipped with fusion splicing to help you get your network back up and running. Over the years, we realized that some ISPs are slower to respond to a broken fiber in your facility. Whether ATT, Spectrum, or Comcast provide your internet fiber, it doesn’t matter to us. Most carrier uses single mode fiber to deliver internet to the end users. Even if they use OM3, OM4, or OM5 Multimode fiber, we can help you fix this.
Do you have existing fiber optic cables or connections that you need to move? Do you need a vendor to help you move a fiber optic jack? Give us a call. Even if we didn’t install it, we can help you move it. Our certified technicians are equipped with the knowledge and equipment to get the job done.
We offer Fiber Optic Cables Testing Services. From the basic laser test to a ODTR tests. Call us for details. 512.257.1433
When splicing, make sure tools are in good condition and clean. Ensure your fiber cleaver hasn’t exceeded the maximum usage recommended by the manufacturer.
Make sure the fiber termination area is clean. Fiber is so tiny and sensitive that even some dirt or debris can cause trouble.
Make sure you clean the tips before connecting fiber to equipment.
Think about Safety: Wear goggles! Could you make sure you have tape to catch broken fibers? Fiber, made of glass, can be sharp and penetrate your skin.
Do not exceed fiber optic cable specifications: Pulling Tension or Minimum Bend Radius
Make sure you install the correct cable: indoor/Outdoor, CMR, CMP, Aerial, Burial, or Direct Burial.
Make sure you calculate for the extra maintenance loop on each side.
Business Communication Solutions offers fiber optic cable repair in Austin and surrounding areas. We service the following cities:
Cedar Park, Pflugerville, Round Rock, Leander, Hutto, Taylor, Buda, Manor, Elgin, Georgetown, Jarrell, Lakeway, Brushy Creek, Dripping Springs, Driftwood, Liberty Hill, Bee Cave, Anderson Mill.
Fiber Optic Tech 1 Certification Number – 2087158
Fiber Optic Tech 2 Certification Number – 2087432
Fiber Optic Tech 3 Certification Number – 20810150
Elite Installer ID# 290400755

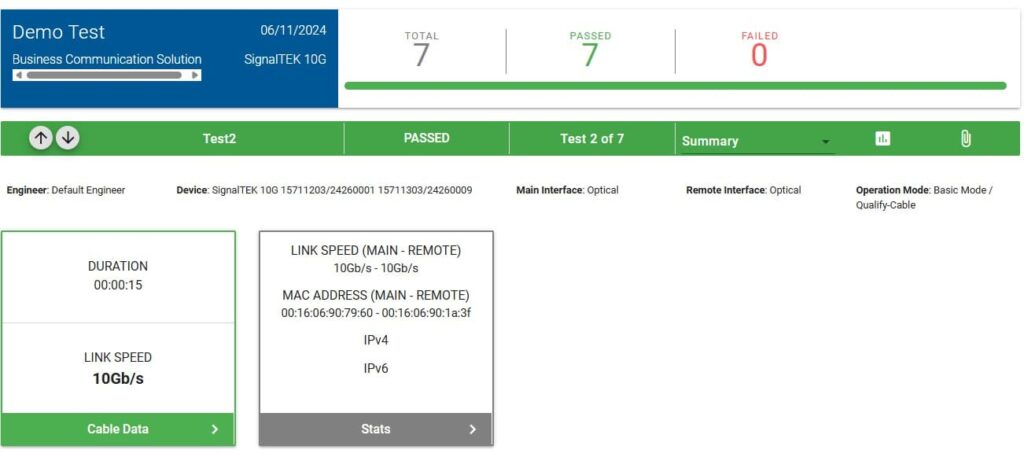

Ensuring your Fiber Optic data cable is professionally tested delivers significant benefits for your business’s communication infrastructure. By verifying cable performance and identifying potential faults or signal losses, testing guarantees optimal network speed, reliability, and data integrity.
This reduces downtime, prevents connectivity issues, and extends the lifespan of your network hardware. A tested and certified cable system also provides peace of mind during office moves, equipment upgrades, or troubleshooting—making it a cost-effective step toward maintaining efficient and uninterrupted business operations.

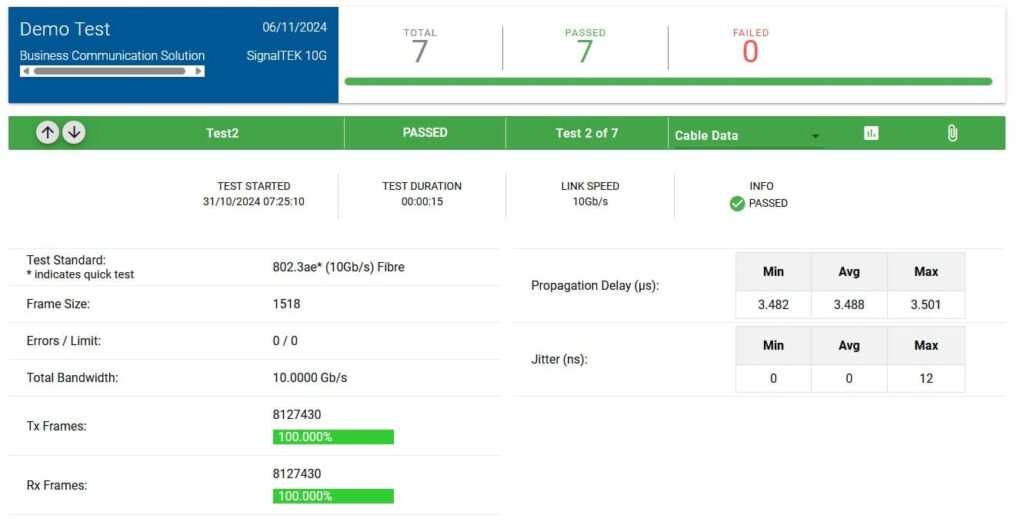

Frame Size
Total Bandwidth
Tx Frames
Rx Frames
Propagation Delay
Jitter
Passed

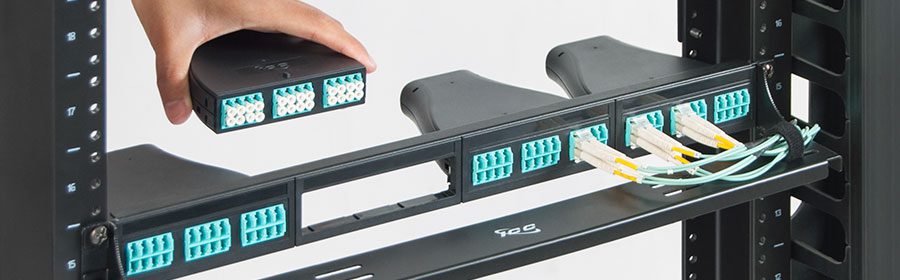

Fiber Optic Enclosure – Helps organize fiber strands and houses the fiber connectors. It can be rack mount or wall mount. It can be indoor or outdoor. This product help minimize damage to the fiber cable and or termination. If you do break a termination or connectors, most of the time, it will be on the fiber patch cord side, which are very inexpensive and easy to replace.
Fiber Optic Conduit – Use to protect the fiber cable. It’s typically orange – Most tech see orange conduit, they will typically know or assumed it’s a fiber cable inside. This product also give the fiber cable an extra layer of protection from the element, whether it is water, run rays, and or animals or rodents.
Fiber Optic Connectors – Typically SC, ST, or LC.
Fiber Optic Patch Cable – Use to patch equipment to fiber connectors. It can be same connectors on both ends or it can be different ends. A good example for using patch cables on different end would be, you have SC connectors on your fiber cables, but your equipment have LC connectors. In this case, you would purchase a patch cable with LC and SC connectors. Fiber optic patch cable also comes in different length which makes it flexible.
Fiber Optic Module – AKA – Fiber optic inserts or jack – Use to terminate fiber optic cable to a desk and or wall jack. Make it easy to plug and or unplug a jack.
Fiber Optic Splicer – Use to repair fiber optic cable that have been broken or cut. It can be mechanical or fusion splice. This product comes very handy, especially when time is sensitive. It’s much faster and less expensive to repair a fiber then it is to run new fiber cables in most cases. Fiber Optic Fusion splicer in simple term, can splice or weld two fibers cables or connectors with same specs together. Example, splicing an OS1 cables with OS1 pigtails, or splicing an om3 fiber cable with another om3 fiber cable. You wouldn’t want to splice os1 fiber optic cable with an om2 fiber cable.
Fiber Optic Splitter – A passive network splitter that will divide one incoming fiber signal to multiple signal. It is also known as single point to multi-point splitter. Most commonly use in home (Fiber to the Home – FTTH) application. It help keeps cost down dramatically. Incoming signal typically comes from the CO or Central Office. It then comes to the Fiber optic-splitter. From here the splitter goes to a termination point, which can be patch to a home. One very cool thing about this devices is that it uses no power (AC or DC that is). Imagine we have an ethernet network switch that uses no power?
Optical Network Terminal – Typically install outside the house. ONT typically converts fiber optic light to ethernet or copper which are more common on for routers and PC. Some ONT even deliver analog dial tone. In a way, it is a media converter.
Fiber Optic Pigtails– Fiber optic pigtail factory made cable with connectors on one end and the other end un-terminated. Why use factory pigtails? It has lower loss and typically have better connections than those made in the field. We typically use a fusion splicer to weld fiber pigtails to the fiber optic cables. Fiber pigtails can comes in as many different options: Single-Mode, Multi-Mode, LC connectors, SC Connectors, ST Connectors, 2 strands, 4 strands, 6 strands, 12 strands, 24 strands, etc. As you can imagine now, the possibilities are endless. Many factory can customize pig tails to your orders as well.
Fiber Optic Media Converter– Fiber Optic Media Converter are typically used to convert Fiber to Ethernet. Typically, we use the same on both sides of the fiber cables.
Powered Fiber Cable – Fiber Optic cable can be single-mode or multi-mode. It has an extra pair of powered cables to power on low voltage devices such as PoE Switches, Security Cameras, Access Point, et
Did you know that the width of a Single-Mode fiber is only 9 microns? The average width of human hair is 100 microns. Let that sink in for a bit.
